Friday, 27 September 2013

iPhone 5s front screen panel teardown

What's in your mind when you get the iPhone 5s into the hands? Exciting only? Did you think of why it value the price you paid? Now, pls come to have a see the parts of iPhone 5s teardown, let it make your pay valued.

Here I just show you the iPhone front screen panel teardown.Pls first look at following pictures:




During this process, we just use the suction cup to open the iPhone 5s lcd screen digitizer assembly with carefullness 100%. But we can’t make it with a beat, because there is the home button flex cable connecting the screen and tail plug. To avoid to cause accidental damage to the cable, we should be priority to keep the distance in 2-3cm while opening screen. After releasing the home lcd assembly cable, we can open the screen totally.

It is not a hard trip, but we must be careful to do with details. If not, some parts will be damaged. So does the other cell phone replacement repair pars.

Wednesday, 25 September 2013

Date with the more convenient wallet leather case for N7100

Hi,everybody! Enjoying in the cool autumn, we should do something cool to thanks for the "Miss Autumn". She always brings the cool windy, clear cloudy, and the warm heart to us. Now, she's stay with you, can you feel her? So today, I'll date with the pink series wallet flip stand leather case for Samsung Note 2 N7100 soaked in the autumn views.We can go for a hiking,biking,or a picnic...Anyway, it will be a nice trip.






Sit in the front of your computer, you may not go outside for a short trip.However,if not this moment of living, it may be the next time, the wenkend or at dusk, as long as you would like.If you still use your case, which is just a case, you'll never experience the relax in these nice day.As the cell phone replacement repair parts, you can remain your old parts in your cell phone, but the new one will make your phone more flexible and convenient.

Saturday, 21 September 2013

iPhone 5C Teardown: Step by Step Guide Offered By Hytpart.com

The new Apple devices finally meet the cutomers,with 5C and 5S,today we gonna “C” what inside the big iPhone 5C
Join us and experience the “C” together!





Step 1 — iPhone 5c Teardown

Big day today. We just finished the iPhone 5C teardown, and now it's time to record and write down every detail
The teardown team are so excited that we celebrate when we finish the whole process,and enjoy some Red Bull together!
Never forget to power off and eject the SIM card tray holder before dissemble



Step 2  — iPhone 5c Teardown

There are 2 super tiny Pentalobe screws slightly different from the ones we found in the iPhone 5,to be more specific,the structures and appearance are different
Use a Pentalobe screwdriver to disassemble the Pentalobe screws


Step 3  — iPhone 5c Teardown

Using a small suction cup to dispatch the front panel assembly
In the following procedures,we will disassemble the logic board first



Step 4  — iPhone 5c Teardown

Here we use a tweezer to remove the front panel assembly cable bracket from the logic board
And remove the antenna connectors with spudger or an opening tool, you will notice the adhered connectors, accessory that haven't seen in any previous iPhone
You need to be careful as the components are fragile,easy to broken






Step 5  — iPhone 5c Teardown

  Disconnect the three front panel assembly cables (Front-facing camera and sensor cable/Digitizer cable/LCD cable) and remove the screws that secure the logic board with cross head screwdriver,and lift the logic board with a spudger.
You can see the front and rear pictures of the logic board
We have also remove the cameras from the logic board, just want to show you the structures
















Step 6  — iPhone 5c Teardown

After that you can remove the battery ,it’s kind of shock for me,because I didn’t find the metal battery connector bracket,ok,never mind,continue!
Use a spudger to pry the battery up from its socket
Be careful when you pry it up,do it gently and lift it from both top and bottom side,what is more,you need to lift it from the logic board side,instead of do it next the volume button and frame,or you may crack the whole back housing!

We finally found out that the 5C battery is fixed to the back housing by two double-sided tapes,that explains why there is no battery bracket,and may also another reason we get a cheaper price!










Step 7  — iPhone 5c Teardown

Continue with removing the components on the top of 5C,we use cross-headed screwdriver and tweezers here




It’s loud speaker (speaker closure)






The charging dock flex cable

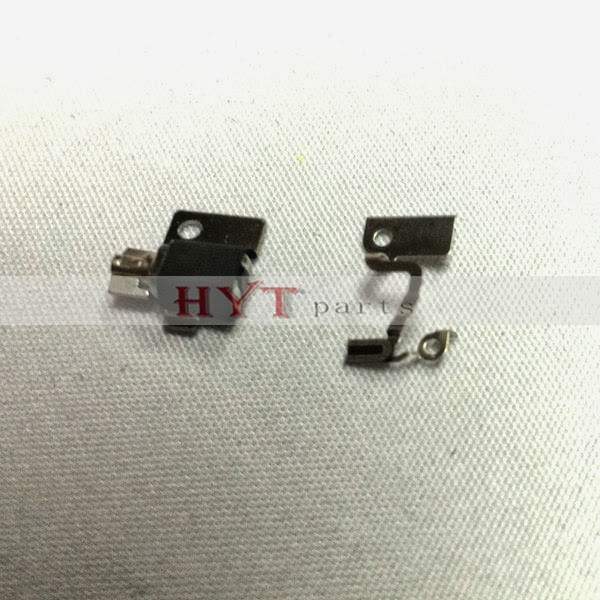

    Do not forget the mini motor in the corner (the picture of the motor and motor bracket)
















Power and volume (mute) flex cable


and external power and volume (mute) switch buttons




The components and structures of the iPhone 5C.  Big C here!
